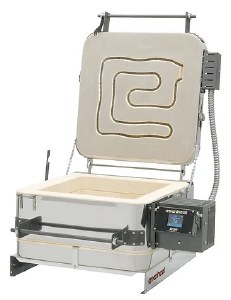

Studio Pro 14
The Studio Pro 14 is a solid choice for the beginning glass artist or small studio. The firing chamber fits a 13" x 13" shelf which can fit a wide range of projects. The Studio Pro 14 is small enough to fit comfortably in any studio area. The Studio Pro 14 features our Dual Access Design. The Dual Access Design combines traditional front and top loading features into one, truly evolutionary kiln design. The Studio Pro 14 gives you the advantages of both front and top access in a single, dual hinged design that's smooth and precise. Default production for Studio Pro 14 is 120V, Single Phase.

Features:
Front Access
The defining feature of the Studio Pro design is its front access. Simply lift the chamber to expose the entire floor. It's wall-free and wide open. Front access is perfect for glass placement: simply build directly on your shelf and close the chamber. Front access is also great when using tools that require a horizontal approach such as raking, roll ups and manipulation techniques.

Top Access
The Studio Pro 14 features top access as part of the dual access design. Top access is excellent for the loading of shelves and forms as it allows for easy and precise placement. Top access is also preferred for many vertical-approach manipulation techniques such as embossing.

Full Firebrick Design
The Studio Pro 14 is constructed completely of firebrick including the lid. Firebrick is desired in a glass kiln as it stores heat in the beginning of the firing which acts to smooth out temperature swings. It then releases heat slowly at the completion of the firing resulting in very calm annealing, especially over an annealing range. It's just beautiful. As with any glass kiln, you want a portion of firebrick in the mix.

Swing View Equipped
Studio Pro 14 temperature controls are fitted to our Swing View Adjustable Enclosure. The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's that simple. The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.

Relay Access Port
The Studio Pro 14 incorporates our Relay Access Port for simple, no-panel-off relay replacement. Simply remove the access plate to gain access to the mechanical relay. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a screwdriver! It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Bench-Top Operation
The Studio Pro 14 is designed to be placed directly on your counter or bench-top or within the included floor stand (see below), the choice is yours. Bench-top operation positions the kiln at waist level for very comfortable front access use. Please note that counters and bench tops must be constructed of non-combustible material and be capable of supporting the load of the kiln.

Curved Element Routes
Heating element routes in the Studio Pro 14 lid are all curves. There's not a straight line to be found. These curved routes promote additional element retention.

120V Standard Plug
The V8 Vitrigraph operates from 120V and is equipped with a standard North American 120V plug. Connection is very easy.

Floor Stand included
The Studio Pro 14 is supplied with a 16" stand for optional floor placement if desired.



Contorller Options:

Rampmaster 3 - 12 Key Controller
The Rampmaster 3 is built from Bartlett Instruments V6-CF platform and is designed primarily for glass work but works well for other applications including heat treating. The Rampmaster 3 features dedicated buttons and readout and is offered to those who don't want a touchscreen. As with all of our controls the Rampmaster 3 is paired with a low-error Special Limits thermocouple for very precise temperature sensing. Match it up with our Quiet Drive Solid State relay system and treat yourself to some serious performance with an old-school vibe.

Icon Touchscreen Controller
The Icon is built around Bartlett's new Spark platform and brings touchscreen design to the market at a lower price point. The Icon / Spark was rigorously field-tested by Bartlett, Evenheat and others over the latter course of 2023. Programming was found to be clean and simple. User interaction with the display was deemed excellent. As expected our Quiet Drive Solid State relay system performed beautifully. As with all Evenheat control designs, the Icon adds to an existing control platform with improvements like low-error Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for excellent Wi-Fi reception for the Bartlett mobile App.

Icon+ Touchscreen Controller
The Icon+ starts with Bartlett's well-regarded Genesis platform and adds low-error Special Limits thermocouples for incredible precision. We also fit the Icon+ with a non-metallic faceplate for exceptional Wi-Fi reception for the Bartlett mobile App. These added features take the Icon+/Genesis to a performance level found nowhere else. Programming and use is easy and straight-foward. Performance is legendary and shines even brighter when paired with our Quiet Drive Solid State relay system. The Icon+ represents the ultimate combination of Bartlett control prowess and Evenheat design to offer the highest performing Genesis based control available.

Tap II
The TAP II with its large screen, well laid out format and incredible mobile App is our most popular temperature controller. Firing schedule creation and use are simply simple. The science behind the screen delivers accurate and consistent results especially when matched with our Quiet Drive Solid State relay system. The TAP II is fitted with low-error Special Limits thermocouples for extremely accurate temperature control as well as our non-metallic faceplates offering excellent Wi-Fi reception. Get the TAP, get the highest rated kiln control mobile App and get going.



Addtional Kiln Customization Options:

Quiet Drive Solid State Relay Option
Studio Pro 14 models are available with our Quiet Drive Solid State Relay option. Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. The Quiet Drive is arguably the best designed and best performing solid state system on the market. Upgrade to Quiet Drive Solid State Relays here!
