AirKing M-11 S with Silencer

Air King M-11 Standard - Noise Silencer

The Air King M-11 series units are perfect for potters and anyone else working in a dusty enviroment like personal studios, workshops, or any area where dust, smoke, or odors can interfere with your craft. These pass-through units have a single inlet on one side, drawing in air and expelling the filtered air from the opposite end, ensuring a consistent flow.

Each unit features a variable speed switch, giving you full control over the airflow in your workspace.

The M-11 series also includes a one-inch washable foam industrial pre-filter to capture larger particles, which helps prolong the life of the secondary Merv 15 multi-pocket bag filter. The disposable filters are easy to replace, making maintenance straightforward and cost-effective, so you can focus more making and less on cleaning.

The M-11 Standard features a one-inch washable foam, industrial pre-filter which catches the larger particles, extending the life of the second stage, Merv 15, multi-pocket bag filter. Disposable filters are easy to service and provide for simple, low-cost maintenance.

With low equipment, operational, and maintenance costs, Air King industrial air cleaners are an economical way to improve your overall air quality

Applications:
- Woodworking dust
- Grinding dust
- Environmental particulate
- Clay reclamation/silica dust
- Cigar/cigarette smoke
- Other smoke/dust contaminants


Features:
- Disposable filters
- Self-contained units have the versatility to be used most anywhere
- Easy installation & maintenance
- Four-way louvers for airflow pattern control
- Durable 16 gauge powder coated construction
- Optional magnehelic gauge identifies filter change needs
- Multiple filter configurations available
- Easily relocated to accommodate growth or space redesign


Add-ons, Options, and Accessories:
- Pressure Gauge/Filter Change Indicator
- Silencer w/4way louver (reduces sound by 6-8 decibels)
- Wall mount bracket system
- Chain, Q-Links. & eyebolts kit

Installation Options: (must be selected in drop down options at time of purchase)
- Hung with chains/cable
- Installed using wall brackets


Dimensions - 20”W x 15”T x 44”L
Weight - 135 lbs
Volume (CFM) - 675 CFM
Pre-Filter - (1) 1” Washable Foam
Primary Filter - (1) 95%, 12” 6 Pocket Bag (15 sq ft) with 18lb Charcoal
Motor - 1/4 HP PSC; 115/1/60; 3.8 amps
Blower - 9 x 9 Direct Drive; variable speed
Construction/Paint - 16 Gauge; gray chemical resistant powder coating
Noise Level - 48-65 dBA
Application - Extra Odor Control


Images show:

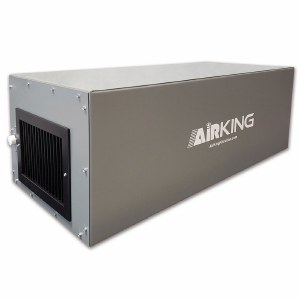

1 - M-11 AirKing Filtration Unit
2 - Noise Silencer
3 - Pressure Gauge
4 - Different angle with Pressure Gauge
5 - Washable Foam Filter and replaceable Primary Bag Filter
