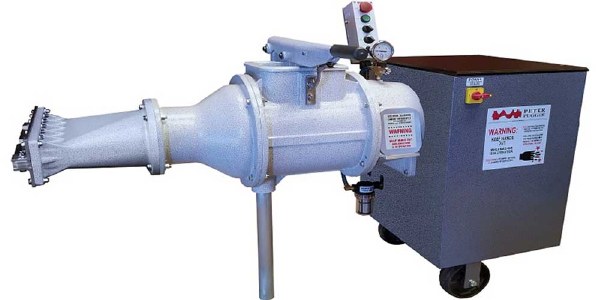

Peter Pugger VPM-30 TE

Tile Making Pug Mill

ADDITIONAL INFORMATION :
VPM-30TE Specifications

We love the Peter Pugger pug mills! Peter Pugger is the innovator of this type of equipment for the pottery industry and they continue to offer quality products that are built to last.

Based on the standard VPM-30, the VPM-30TE has incorporated the additional features to transform the Power Wedger into the most versatile tile making machine available:

Aggressive Stainless Steel Auger: The VPM-30TE auger design has been modified to accommodate the enormous backpressure generated as a result of extruding large amounts of clay through a small orifice (tile die/adapter).

Variable Speed Control: This allows the operator the ability to speed up or slow down the pugmill. This is especially useful when extruding through dies. Because of the back pressure generated by a large amount of clay being forced through a small orifice, the speed control allows the operator to slow the pugging as required. In turn, perfect deaired configurations are easily extruded through the Pugger-Mixer. There are additional advantages if you are a "single potter studio". The ability to slow the pugging allows for time to place pugged clay into containers or bags.

Upgraded 2Hp Motor: In addition to the massive gear reduction the gearbox provides, an upgraded 2Hp motor has been designed into the VPM-30TE to provide ample power.

Tile Nozzle: The VPM-30TE has the ability to utilize the standard nozzle with a 3" diameter pug or a tile nozzle with a 10" wide x 2" tall opening. Nozzles can be switched out by simply removing the four bolts that secures the nozzle to the cone.

Tile Nozzle Adjustable adapter: The tile nozzle adapter allows the operator to adjust the tile thickness and width by simply loosening and sliding the guide plates to the desired dimensions.

The machine is equipped with a safety stop feature so that people cannot operate the machine with the hopper door open.

Manufacturer's Guarantee:
Two year coverage on the whole machine; return the broken part, and it will be replaced or repaired* (owner pays shipping to manufacturer one way only).
*If, in the manufacturers' sole opinion, failure is due to mistreatment or lack of reasonable maintenance, nominal charge may be made. Motor and transmission manufacturer's usual warranty applies to those parts.



Shipping Weight 470 lbs
