The eQuad series features the great quality that L&L is known for, and they comes standard with Quad elements. Instead of three elements per section, these kilns have four, which ensures more reliable and even firings. L&L is a local company for The Ceramic Shop, and we love to support local business.
Why should you choose an L&L kiln? The hallmark of the L&L kilns, what really sets them apart from other kilns, is the Dyna Glow Ceramic Element Holders. They protect your firebrick through years of Cone 6 and Cone 10 firings, promising better heat distribution inside the kiln, and ease in replacement of the elements when it becomes necessary. L&L Kilns are built to last and easy to maintain. L&L has 64 years of experience in making quality kiln products and offering top notch customer service.

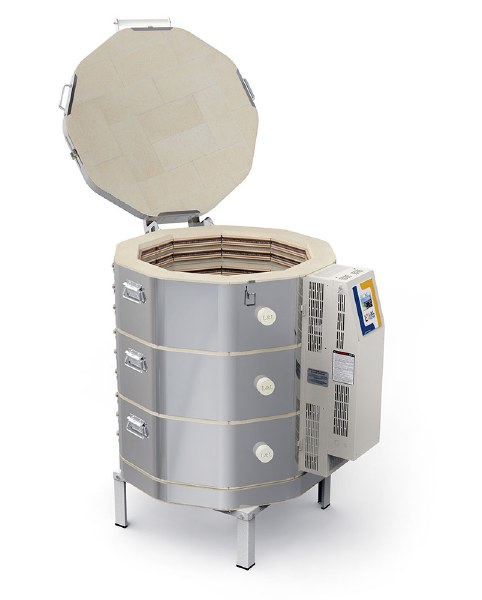

Model eQ2327-3 eQuad-Pro Production Kiln with Multi-Program Three-Zoned Genesis Touchscreen control mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, Quad Heavy Duty Elements, protected thermocouples, a strong solid-top stand, an easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 27" high (6.7 cubic feet). 3" K23 brick. Higher power than normal kilns. Includes panel circuit fuses. Direct power connection. Cone 10 for all voltages. Three thermocouples. No charge for 3-phase versions. C-ETL-us is listed in the USA & Canada. Cone 10 for all voltages.
GENESIS TOUCH SCREEN CONTROL
The Genesis control includes a touch screen interface and WIFI connectivity added to the proven software of the DynaTrol. More programming options and memory. Free App available to monitor kiln via WiFi. Touch-screen intuitive technology for easy user interface. Easy-to-follow screen descriptions. Different user-interface levels, which can be set to match the user’s firing knowledge. Graphical display of the firing process right at the controller, this means you can graph the firing in real time and compare the program with actual results. Glass programs included. Store up to 12 custom user programs. Up to 32 segments per program. Ability to make adjustments during a firing such as add segments, add temperature, and skip segments. Built in diagnostics testing. Alarm. Error Codes. WiFi enabled for easy software updating. Included Phone App allows you to monitor kiln operation remotely.
Multi-Zone Control for Even Kiln Heating
Even Firing. Makes Loading more flexible. Adjusts for element aging. The kiln control separately measures temperatures in the bottom, middle, and top of the ceramic kiln. It automatically adjusts the heat output of three kiln zones during the entire glaze or bisque firing.
PLATINUM THERMOCOUPLES
The very best thermocouple for constant high fire applications is a Type S platinum thermocouple with an alumina sheath. Type S thermocouples are composed of a positive leg which is 90% platinum and 10% Rhodium, and a negative leg which is 100% platinum. Since they can be used up to 2700°F/(1480°C) they will not drift or degrade in these kilns.
QUAD ELEMENT DESIGN
The combination of 1/2” diameter element coils, the doubled surface area of the Quad element design, and superior heat transfer of L&L’s patented ceramic element holders, make this the best element system in the world today.
Please note: 3-phase kilns must be direct wired and a power cord is not supplied.
Easy-Service Control Panel
The Control panel pulls down easily and remains perpendicular to the element box for very easy access. All wiring is neatly laid out in a professional and industrial way with color coding and numbering for easy repair and troubleshooting. Best of all the double panel design results in cooler panels and longer control and relay life.
Sectional Kiln Construction
The sectional construction of our kilns allows for easy disassembly, transportation, and maintenance. This modular design is particularly advantageous for studios with space constraints or those requiring frequent relocation of equipment.
Protected Thermocouples
Ceramic protection tubes shield the thermocouple tips, preventing oxide dust from contaminating the kiln during firing.
Heavy-Duty Type K Thermocouples
Thick 8-gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Quad Element Design
The Quad Element System offers a robust element for extended longevity under production conditions. Standard on eQuad-Pro and JH Series. Optional on most other kiln series.
Stronger, Safer Kilns with Ceramic Element Holders
Discover L&L’s exclusive ceramic element holders that protect kiln elements, ensure easy maintenance, and deliver consistent, reliable firing results.
Solid Ceramic Peephole Plugs for L&L Kilns
Solid large non-tapered peepholes allow a wider view into the kiln. The peephole plugs are made from solid ceramic and are not as fragile as hollow-type plugs used on competitors' kilns.
"No Crimp" Ceramic Element Connections
Industrial-grade ceramic terminal blocks make changing elements easy. All contact between elements and wire lugs is over a wide surface of heavily torqued stainless steel washers.
Full Support Stand for Kilns
Aluminized stands are solid and corrosion-resistant, offering full, robust support under the kiln.
Stainless Clips Secure Lids to Bands
Stainless Steel clips help the lid stay secure and durable. This extra step ensures that the lid won't slip out of the stainless steel band.
Corrosion Resistant Case
Utilizing corrosion-resistant materials and methods results in a long-lasting kiln.
Easy-Open Spring Hinge for Kilns
Opens wide for loading. A feather-light spring hinge allows full access without a side support bar, making loading and unloading effortless.
ADD-ONS & ELECTRICAL OPTIONS
L&L Furniture Kit includes:
-- Eight 20" Half Round Shelves
-- Six Each of 1/2", 1", 2", 4", 6", & 8" high 1-1/2" Square Ceramic Posts
-- One pair heat resistant gloves
- VENT-SURE DOWNDRAFT KILN VENT SYSTEM
Vent-Sure downdraft vent vents fumes from kiln out of room and away from the kiln. Downdraft venting pulls air down to bottom of kiln. Improves temperature uniformity inside the kiln. Powerful 130 CFM fan motor, typically mounted on wall, allows fumes to be under vacuum in your studio. The strong fan motor helps overcome static pressure in long exhaust lines. The duct may be up to 60 feet in length, and include up to four 90° bends. 120 volts with on/off switch on cord (240 volts available). 8 foot long flexible aluminum duct. Bypass collection box mounted on kiln allows adjustment of venting. Fan motor, mounted away from the kilns, stays cool and no vibration transmitted to the kiln. Multi-Mount Bracket comes with the Vent System - allows you to mount vent motor in various positions.
Rolling Stand for Polygonal Kilns
L&L's rolling kiln stand features heavy gauge galvannealed steel construction with multiple bends for extra strength, locking swivel casters, integrated vent collection box support, and guide posts for the kiln. Each size is fitted to the kiln.
Lift gate service ensures that the delivery truck can lower a pallet or pallets to the ground. When a delivery location does not have a raised loading dock or a forklift on site, a lift gate will be required. This includes all residential deliveries.
