Paragon CS19-S Kiln,
$ 2518.47 New Available online
Paragon

Paragon CS19-S Kiln,

$2,798.30 $2,518.47 $279.83

Item #: CS-19SNNFK

Available Options:

Double Bead Door:

Window:

Furniture Kit:

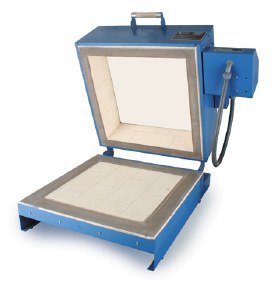

Paragon CS-19S Glass Fusing Kiln
Paragon’s square CS-19S digital glass clamshell kiln is easy to load, because the top lifts out of the way. Load the shelf first and then the glass onto the shelf.

Imagine the glass murals you could make with this kiln. Fire loads of glass-fused bowls, pendants, earrings, cufflinks, and even bracelets. Try out the newest glass techniques that you’ve learned from teachers and friends. Enjoy adding glittering dichroic glass to your work of art. Make gifts that your loved ones will enjoy for generations. When you own a Paragon CS-19S, you can experiment with glass fusing to your heart’s content. Imagine the freedom to experiment any time you want.

Deluxe Ceramic Fiber Top
The CS-19S clamshell heats from the top for even heat distribution across the glass surface. The elements are completely embedded in a lightweight ceramic fiber top. The top has no element grooves or pins; this streamlined design helps eliminate dust in the firing chamber.

The top of the lid is protected with a painted sheetmetal cover. The sheetmetal is bent to cover the sides of the lid and then welded at the corners. You will be amazed at the sturdy construction that has made Paragon kilns renowned among glass fusers. The self-adjusting lid floats at fusing temperatures.

Kiln Lifts Out of the Way for Easy Loading
The walls and top, as a single unit, lift up and out of the way so you can assemble glass pieces inside the kiln without hassle. Add stringers and glass frit to delicate designs, often without using glue. When the kiln shelf is loaded and you are ready to fire, lower the kiln in place.

The kiln is easy to open because of three counter-weight springs mounted under the kiln. This unique feature sets Paragon kilns apart from the competition. The kiln base extends 4" in the back to support the weight of the kiln when in the open position. The base comes with mar-proof rubber feet. The walls and bottom are made from hand-selected insulating firebricks.

The CS-19S clamshell top and kiln walls are one unit. If you need the version with a separate lid, please see the CS-19D (double opening).

Optional Glass Window and Bead Door
Enhance your glass fusing experience with the optional high temperature 1" x 3" glass window. Simplify fusing by watching every stage, from softening, to tack fuse, to full fuse. Watch the glass to fine-tune a digital program. (Always wear green #3 firing safety glasses while watching the glass through the window.)

You can even anneal glass beads with your CS-19S. Order the optional double 2" x 6 3/8" bead doors, which mount to the front of the kiln. Use your kiln to safely cool large, ornate beads through the annealing range.

Reliability at the Heart of the Kiln
The CS-19S has a two-year warranty. The temperature sensor, or thermocouple, is sheathed with high-nickel stainless steel for long life. A heavy steel base supports the reversible brick bottom completely. These features are extra assurance that your Paragon kiln is built to last. No extra stand is needed.

The CS-19S comes with a mechanical relay, which sends power to the heating elements. Or you can order the optional industrial mercury relay for your CS-19S. The mercury relay is the longest-lasting relay we sell.

Specifications:
Max Firing Temp: 1700 F
Inner Dimensions: 19" W x 19" D x 6"H
Outer Dimensions: 34" W x 33" D x 15.25" H
Cubic Feet: 1.35
Voltage/Phase: 240 V, Single Phase
Amps: 20
Watts: 3840
Shipping Weight: 215 lb

Please note that free shipping is only valid for customers in the continental United States.


Max Firing Temp: 1700F
Inside Dimensions (inches): 19W x 19H x 6.5D
Cubic Feet: 1.35
Voltage: 240
Amps: 16
Watts: 3840
Plug: NEMA 6-20R
Shipping Weight: 247 lbs
