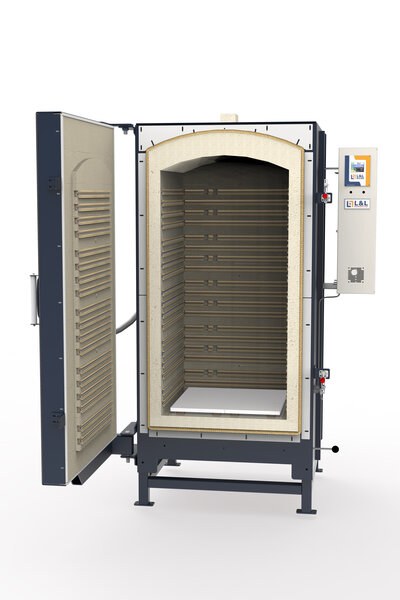

Model EL2448 Easy-Load Front-Loading kiln with Multi-Program Three-Zoned Genesis Touchscreen control, hard ceramic element holders, protected thermocouples, separate attached stand, cool-firing separate side-mounted panel, multi-layered insulation (3" K23 firebrick with 2" back up mineral wool), full arch 4-1/2" thick firebrick roof made of harder K25 firebrick, side, back and door elements, door gasket, heavy gauge welded case that is powder-coated hammertone blue for corrosion resistance, manual vent system with roof plug and bottom inlet holes with sliding damper. 25" Wide x 26" Deep x 48" High (16 cubic feet). There are three thermocouples. No charge for 3-phase versions. MET-us is listed in the USA. Direct power connection. Cone 10 for all voltages.
Genesis Touchscreen Kiln Controller
The Genesis control includes a touch screen interface and WIFI connectivity added to the proven software of the DynaTrol. More programming options and memory. Free App available to monitor kiln via WiFi. Touch-screen intuitive technology for easy user interface. Easy-to-follow screen descriptions. Different user-interface levels, which can be set to match the user’s firing knowledge. Graphical display of the firing process right at the controller, this means you can graph the firing in real time and compare the program with actual results. Glass programs included. Store up to 12 custom user programs. Up to 32 segments per program. Ability to make adjustments during a firing such as add segments, add temperature, and skip segments. Built in diagnostics testing. Alarm. Error Codes. WiFi enabled for easy software updating. Included Phone App allows you to monitor kiln operation remotely.
Multi-Zone Control for Even Kiln Heating
Even Firing. Makes Loading more flexible. Adjusts for element aging. The kiln control separately measures temperatures in the bottom, middle, and top of the ceramic kiln. It automatically adjusts the heat output of three kiln zones during the entire glaze or bisque firing.
Industrial Wiring
Professional and clean layout. Panels are wired to industrial standards with a good clean wire layout.
Solid State Relays on Commercial Kilns
Solid State Relays are quiet and result in longer element life because the switching time is so fast the elements don’t heat and cool as much the way they will with regular mechanical contactors. The whole system includes heat sinks, a cooling fan, and extra safety relays.
Protected Thermocouples
Ceramic protection tubes shield the thermocouple tips, preventing oxide dust from contaminating the kiln during firing.
Heavy-Duty Type K Thermocouples
Thick 8-gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Stronger, Safer Kilns with Ceramic Element Channels
Discover L&L’s exclusive ceramic element holders that protect kiln elements, ensure easy maintenance, and deliver consistent, reliable firing results.
Arched Roof (Easy-Load)
4-1/2" Strong firebrick arch is built the old-fashioned way. Arched roofs are the time-proven way to build a long-lasting front-loading kiln
Solid Ceramic Peephole Plugs for L&L Kilns
Stop breaking peephole plugs! Solid large non-tapered peepholes allow a wider view into the kiln. The peephole plugs are made from solid ceramic and are not as fragile as hollow-type plugs used on competitors' kilns.
Powder-Coated Thick Welded Case (Easy-Load)
A thick welded steel case holds up better to corrosion over time, ensuring the kiln's exterior remains pristine.
Manual Venting System for Cooling Front-Loading Kilns
Allows for cooling without opening the door, enhancing safety and efficiency during the cooling phase.
Strong Door Latches (Easy-Load)
Strong and secure. Two strong door latches secure the door. They are adjustable.
Two-Year Commercial Limited Warranty
Easy-Load and Bell-Lift Kilns come with a two-year commercial limited warranty, ensuring reliability for commercial operations.
Door Shut-Off Switch
Extra safety for front-loading kilns. Shuts off power to kiln when the door is open.
Sintered Powder Metal Elements
APM elements increase element life in difficult applications.
Furniture Kit Includes: Ten 11" x 22" Rectangular Shelves (3/4" thick), Twelve Each 1/2", 1", 2", 4", 6", and 8" Square Posts, and One Pair Heat Resistant Gloves
L&L Kilns UL499 Standard & ETL Listing for Safety
Genesis Touchscreen Kiln Controller
The Genesis control includes a touch screen interface and WIFI connectivity added to the proven software of the DynaTrol. More programming options and memory. Free App available to monitor kiln via WiFi. Touch-screen intuitive technology for easy user interface. Easy-to-follow screen descriptions. Different user-interface levels, which can be set to match the user’s firing knowledge. Graphical display of the firing process right at the controller, this means you can graph the firing in real time and compare the program with actual results. Glass programs included. Store up to 12 custom user programs. Up to 32 segments per program. Ability to make adjustments during a firing such as add segments, add temperature, and skip segments. Built in diagnostics testing. Alarm. Error Codes. WiFi enabled for easy software updating. Included Phone App allows you to monitor kiln operation remotely.
Multi-Zone Control for Even Kiln Heating
Even Firing. Makes Loading more flexible. Adjusts for element aging. The kiln control separately measures temperatures in the bottom, middle, and top of the ceramic kiln. It automatically adjusts the heat output of three kiln zones during the entire glaze or bisque firing.
Industrial Wiring
Professional and clean layout. Panels are wired to industrial standards with a good clean wire layout.
Solid State Relays on Commercial Kilns
Solid State Relays are quiet and result in longer element life because the switching time is so fast the elements don’t heat and cool as much the way they will with regular mechanical contactors. The whole system includes heat sinks, a cooling fan, and extra safety relays.
Protected Thermocouples
Ceramic protection tubes shield the thermocouple tips, preventing oxide dust from contaminating the kiln during firing.
Heavy-Duty Type K Thermocouples
Thick 8-gauge thermocouples last a long time. Special Limit of Error to ANSI MC96.1 specifications is used.
Stronger, Safer Kilns with Ceramic Element Channels
Discover L&L’s exclusive ceramic element holders that protect kiln elements, ensure easy maintenance, and deliver consistent, reliable firing results.
Arched Roof (Easy-Load)
4-1/2" Strong firebrick arch is built the old-fashioned way. Arched roofs are the time-proven way to build a long-lasting front-loading kiln
Solid Ceramic Peephole Plugs for L&L Kilns
Stop breaking peephole plugs! Solid large non-tapered peepholes allow a wider view into the kiln. The peephole plugs are made from solid ceramic and are not as fragile as hollow-type plugs used on competitors' kilns.
Powder-Coated Thick Welded Case (Easy-Load)
A thick welded steel case holds up better to corrosion over time, ensuring the kiln's exterior remains pristine.
Manual Venting System for Cooling Front-Loading Kilns
Allows for cooling without opening the door, enhancing safety and efficiency during the cooling phase.
Strong Door Latches (Easy-Load)
Strong and secure. Two strong door latches secure the door. They are adjustable.
Two-Year Commercial Limited Warranty
Easy-Load and Bell-Lift Kilns come with a two-year commercial limited warranty, ensuring reliability for commercial operations.
Door Shut-Off Switch
Extra safety for front-loading kilns. Shuts off power to kiln when the door is open.
Sintered Powder Metal Elements
APM elements increase element life in difficult applications.
Furniture Kit Includes: Ten 11" x 22" Rectangular Shelves (3/4" thick), Twelve Each 1/2", 1", 2", 4", 6", and 8" Square Posts, and One Pair Heat Resistant Gloves
L&L Kilns UL499 Standard & ETL Listing for Safety
