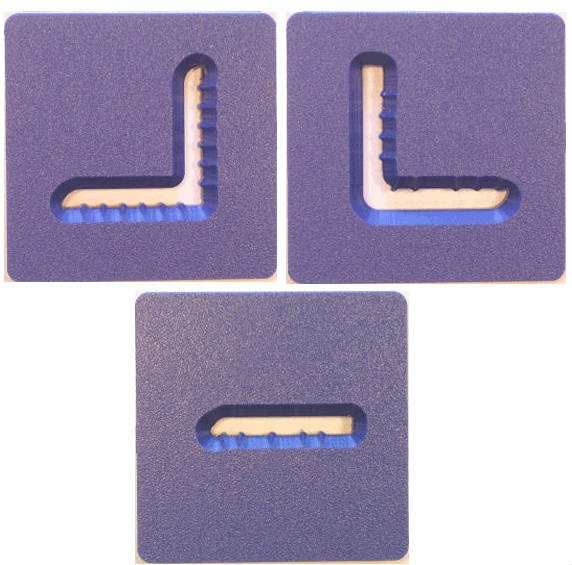

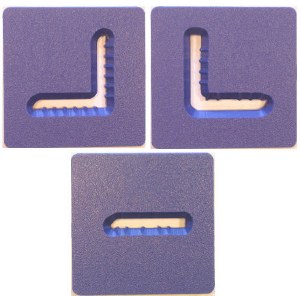

NS 4" Tile Trim Die Set

The North Star Tile Trim die kit is intended for use with any 4" North Star extruder. This set of three dies can make three different trims intended for use on corners or on flat surfaces. The kit includes the following three dies:
DS14A
DS14B
DS14C

The North Star dies are made from ½" thick HDPE Polyethylene Plastic, which means that it won’t rust or oxidize over time.

North Star part # 925DS14

About North Star Extruder dies:
All North Star 4" extruder dies have been cut to perfection on a CNC mill. These wear-resistant and completely non-contaminating dies will be a great addition to your studio or classroom -- each die cavity is beveled to compact the clay as it passes through, delivering a crisper, more solid extrusion. In the North Star hollow dies, there is a bevel on both the interior and exterior portions under each side of the bracket (which holds the center part of the hollow dies) that helps the extrusion to ‘heal’ after it has been cut apart by the bracket. This bracket fits into a slot machined at the top of each hollow die, and is held in place by the barrel of the extruder. If a hollow die is mounted in place, the center part of the die is in exactly the right place and the wall thickness will automatically be even the whole way around. In general, the walls of extrusions 3.5" OD or less are ¼" thick, while larger pieces have 5/16" walls. North Star carries a wide variety of 4" dies.
