North Star Basic Die Set
$ 95.99 New Available online
North Star

North Star Basic Die Set


Item #: NSBDS

Send a Purchase Order
Add to List
Add to Registry

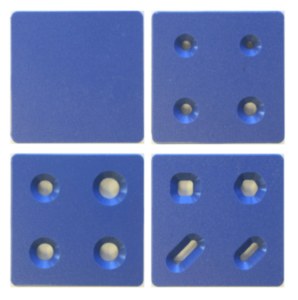

The North Star Basic Die Set is a set of 12 4" extruder dies that are made from 0.5"
High Density polyethylene, making them durable and wear-resistant. The top edge of the die cavity is beveled to compact the clay as it passes through, giving a crisp, more solid extrusion. In the hollow dies, there is a bevel on both the interior and exterior portions under each side of the bracket (which holds the center of the hollow dies). In general, the walls of extrusions with an outer diameter of 3.5" or less are approximately 0.25" inch thick, while larger extrusions have 5/16" walls.

The North Star Basic Die Set includes a blank die and the following:

1/4", 5/16", 3/8", 7/16" Small Solid Coils
1/2", 9/16", 5/8", 11/16" Medium Solid Coils
1/2" Square (not shown)
5/8" Hexagon (not shown)
3/4" & 1" Ribbons

Shipping Weight: 5 lbs.
